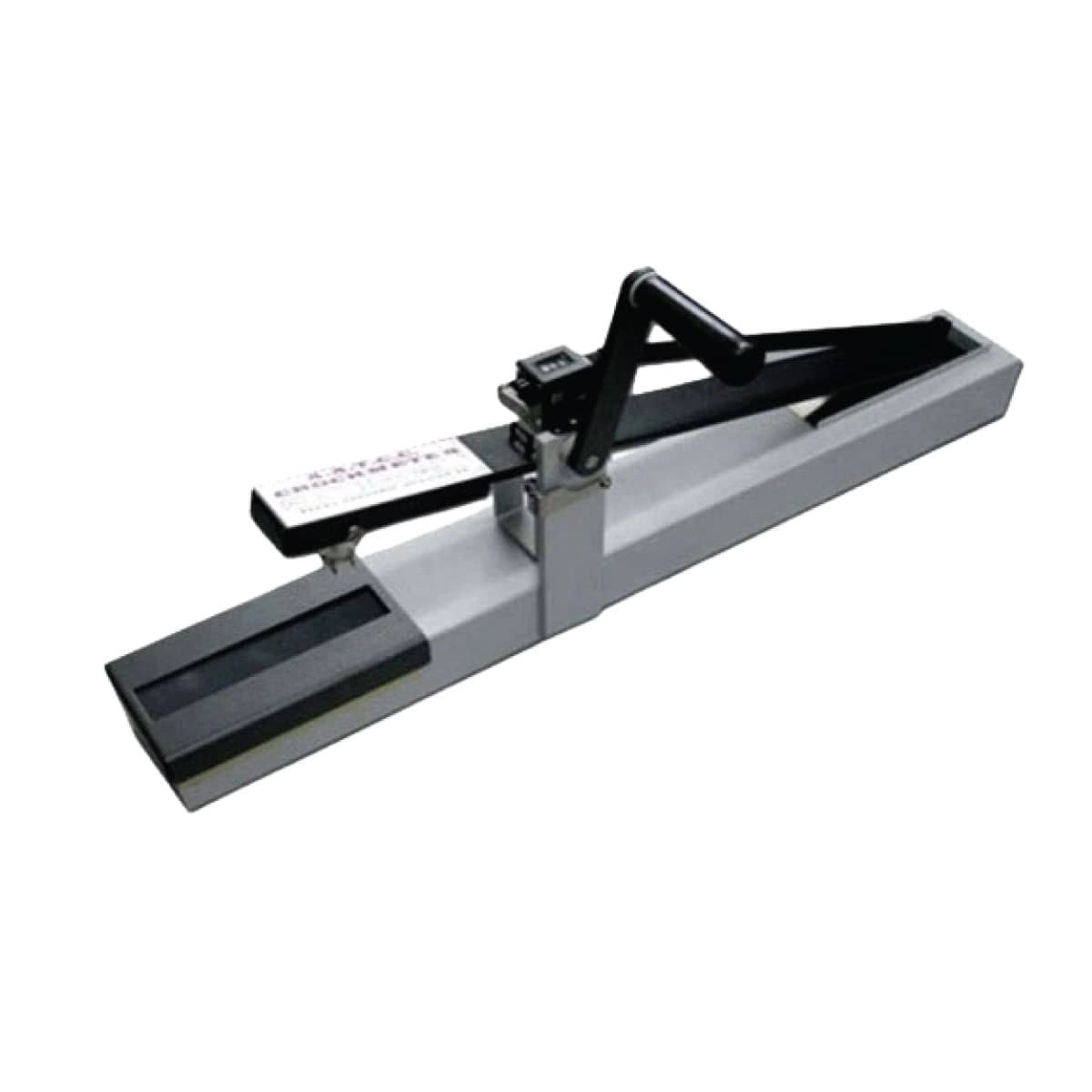

AATCC Hand Operated Crockmeter (HTC-001)
- Diameter 16mm ± 0.2 MM.
- Size of Crock Square (5 x 5) cm.
- Center to center traverse 104mm ± 3 MM.
- Size of Test Specimen 25 x 5cm.
AATCC Hand Operated Crockmeter (HTC-001) is used to test the color density through the rubbing of materials such as fabric, carpeting, yarn and leather in textiles. You can use the this Crockmeter for the color test and the AATCC Hand Operated Crockmeter (HTC-001) price is also competitive. Both wet and dry sampling material can be tested through Crockmeter.
FEATURES OF AATCC HAND OPERATED CROCKMETER (HTC-001)
- it’s hand operated.
- Force on the Finger 9 N
- Size of Crock Square (5 x 5) cm
- Counter (Re-Settable) 0-999
- Size of Test Specimen 25 x 5cm
- Gross Weight of the Unit 8 kg
- Finish Light gray/ Metallic Blue
- Diameter of the Rubbing Finger 16mm ± 0.2 MM .
- Center to center traverse of the finger 104mm ± 3 MM.
- Packing Dimensions of the Unit 80(L) x 32(W) x 46(H) mm.
SPECIFICATIONS OF AATCC HAND OPERATED CROCKMETER (HTC-001)
| Name | Details |
|---|---|
| Model | HTC-001 |
| Brand | AATCC |
| Origin | USA |
| Diameter | 16mm ± 0.2 MM |
| Force on the Finger | 9 N |
| Size of Crock Square | (5 x 5) cm |
| Center to center traverse | 104mm ± 3 MM |
| Counter(Re-Settable) | 0-999 |
| Size of Test Specimen | 25 x 5cm |
| Packing Dimensions | 80(L) x 32(W) x 46(H) mm |
| Gross Weight | 8 kg |
| Finish | Light gray/ Metallic Blue |
ACCESSORIES OF AATCC HAND OPERATED CROCKMETER (HTC-001)
| Name | Details |
|---|---|
| Main Unit | 01 Pcs |
| Crocking Cloths | 200 Pcs Pack |
| S.S. Spring Clips (For Mounting Crock Squares) | 02 Pcs |
| Blotting papers | 200 Pcs Pack |
| Specimen Holder | 01 Pcs |
| User’s Manual | 01 Pcs |
| Calibrated Certificate (Traceble to NPL) | 01 Pcs |
CERTIFICATE OF AATCC HAND OPERATED CROCKMETER (HTC-001)
| Related Standards |
|---|
| IS105 |
| BS1006 |
| AATCC 8 / 165 |
